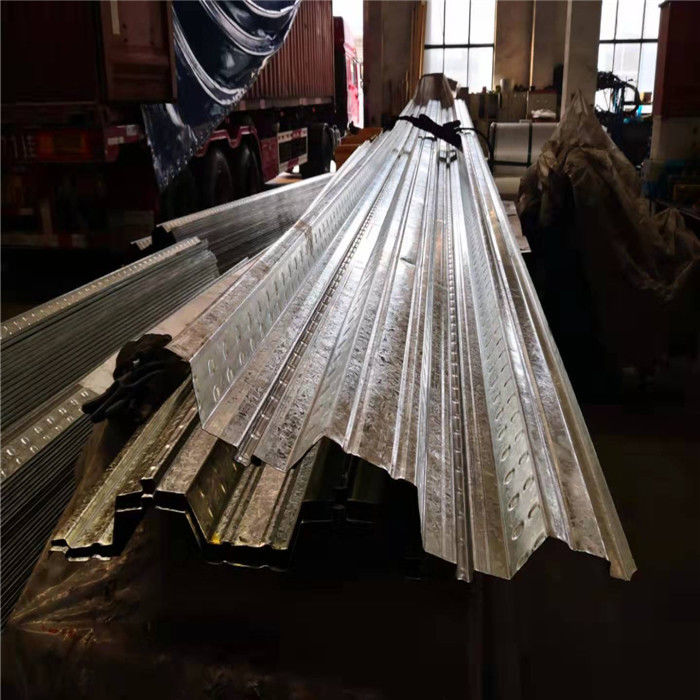

Galvanized Steel Composite Floor Deck 60 Profile 1mm Thick

Name: Galvanized Steel Composite Floor Deck 60 Profile 1mm Thick
Brand: Chongqing Honghao Technology Co., Ltd.
SKU: TR60
Price: 15 USD
Availability: InStock

브랜드 이름:	FAMOUS
모델 번호:	TR60
모크:	100
가격:	$15

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 잔기

무게:

120

재료:

아연도강 GB 미국 EU AS std.

유형:

물결모양입니다

색상:

하얀색

아연 코팅:

275g/m2

표면:

스팽글

두께:

1mm

강철 등급:

SGCC

항복 강도:

Q235 또는 Q345

파고:

51mm-76mm

유효 너비:

688mm-940mm

길이:

0-11.8m

기본 자료:

뜨거운 침지된 갈바나이즈 강 시트

아프지 않은 스팬:

4.5미터

propped span:

6.8 미터

강조하다:

galvanized steel composite floor deck

60 profile floor deck 1mm thick

steel floor deck with warranty

제품 설명

Galvanized Steel Composite Floor Deck Metal Decking Slab Comflor 60 Profile Equivalent

Product Specifications

Attribute	Value
Warranty	1 Year
After-sale Service	Online technical support
Material	Galvanized steel GB US EU AS std.
Type	Corrugated
Zinc Coating	275g/m²
Thickness	1mm
Surface	Spangle
Applications	Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Warehouse, Workshop

Product Description

The ComFlor 60 series composite floor profile equivalent offers lightweight steel decking for multi-rise buildings, combining exceptional spanning capabilities with reduced concrete usage for a cost-effective floor solution. Developed using modern roll-forming techniques, it features:

Unpropped continuous spans to 4.5 metres
Propped spans to 6.8 metres
Exceptional resistance to compressive buckling
Superior span capability compared to traditional decks
Central stud placement and closed ends
Enhanced health and safety features

Technical Specifications

Parameter	Specification
Base Material	Hot Dipped Galvanized Steel Sheet
Steel Grade	SGCC
Yield Strength	Q235 or Q345 (GB/T1591-2008)
Thickness Range	0.8 - 1.5mm (standard: 0.8, 1.0, 1.2)
Zinc Coating	60-275g/m²
Wave Height	51mm-76mm
Effective Width	688mm-940mm
Length	0-11.8m

Available Profile Types

Closed Type: YXB51-200-600, YXB65-186-558, YXB60-253-760, YXB60-180-540
Opened Type: YX75-230-690, YX75-200-600, YX38-152-915, YX51-305-915
Swallow Tail Type: YX51-200-600, YX51-190-760, YX51-200-800

Key Advantages

Greater Durability: Z275-350 zinc-coating provides superior corrosion protection
Unbeatable Strength: Lighter and stronger than conventional slabs with excellent tensile reinforcement
Cost Savings: Reduces need for propping/temporary formwork and lowers foundation costs
Fast Construction: Adapts to rapid construction requirements of steel structures
Fire Proof: Can span long distances without middle propping

We welcome international clients to inquire about our products and visit our facilities.
